Schulte FX-1800 ROTARY CUTTER

Name: Schulte FX-1800 ROTARY CUTTER
Brand: Schulte
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

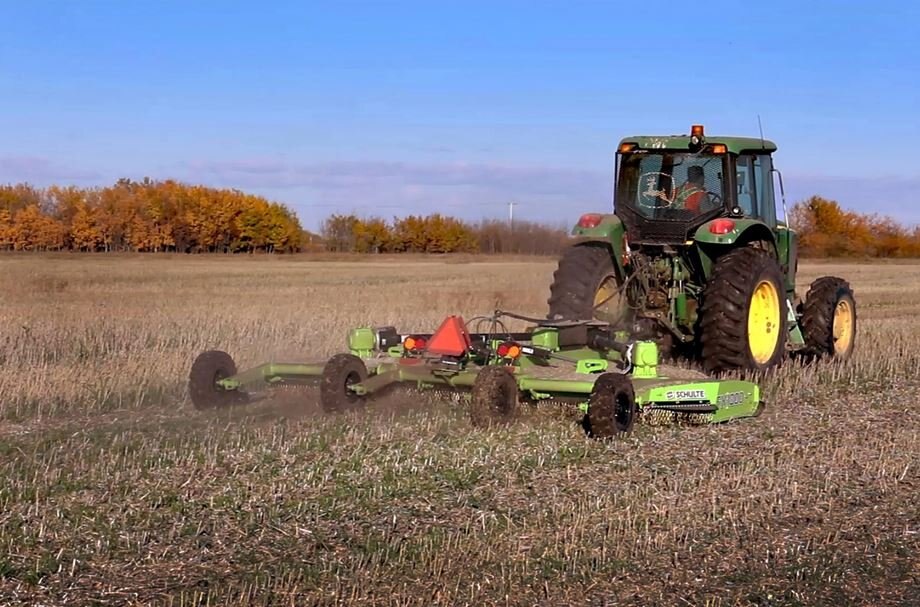

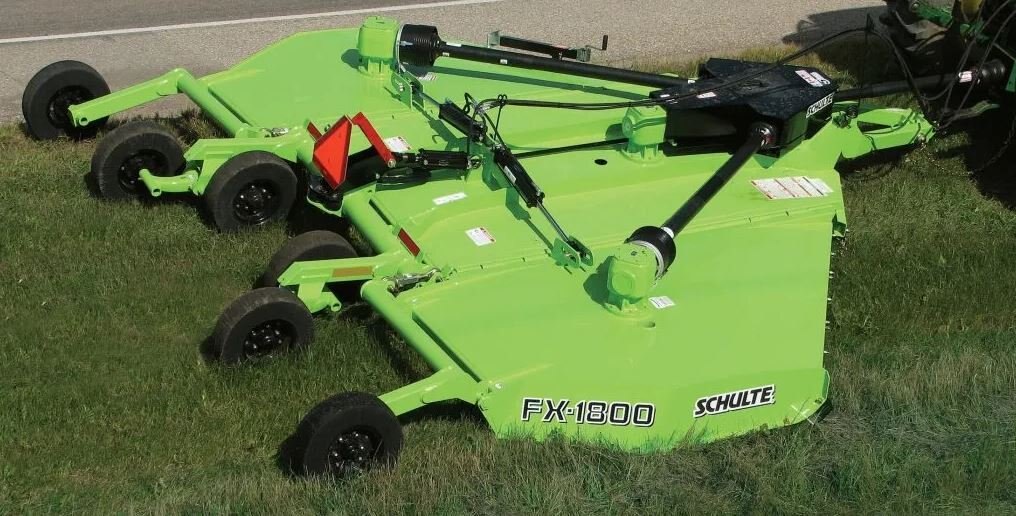

Our medium duty 15′ flex wing, rotary cutter

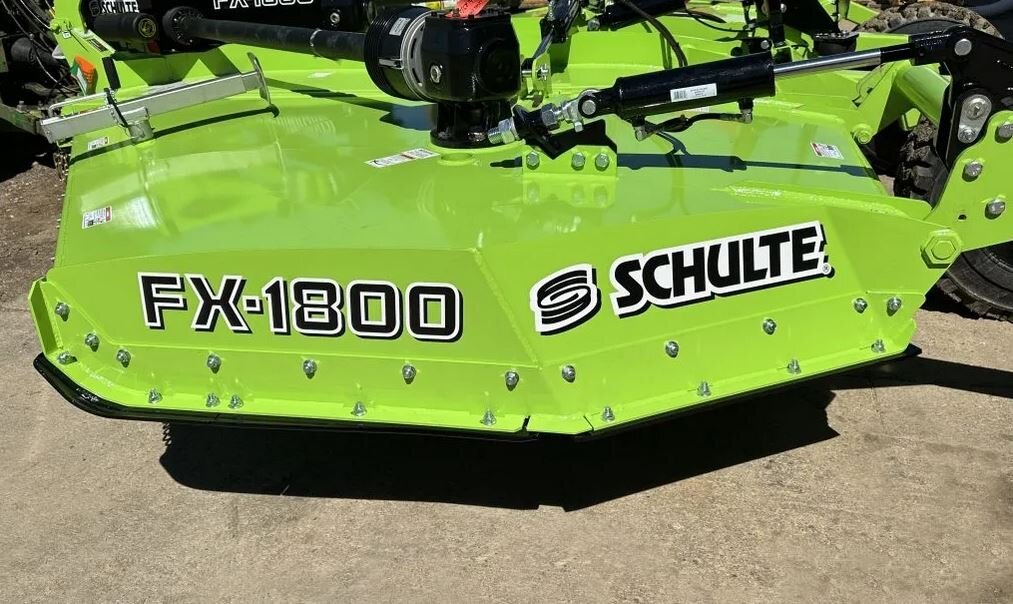

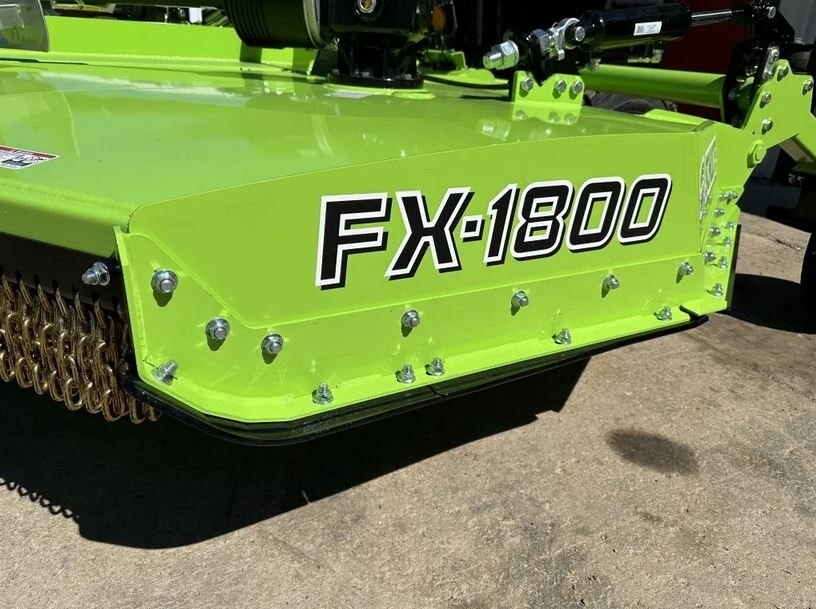

A single domed 7 ga continuously welded deck makes this rotary cutter extremely easy to clean, prevents water pooling and rusting and helps shed debris.
6.5 ” blade overlap and high blade tip speeds.

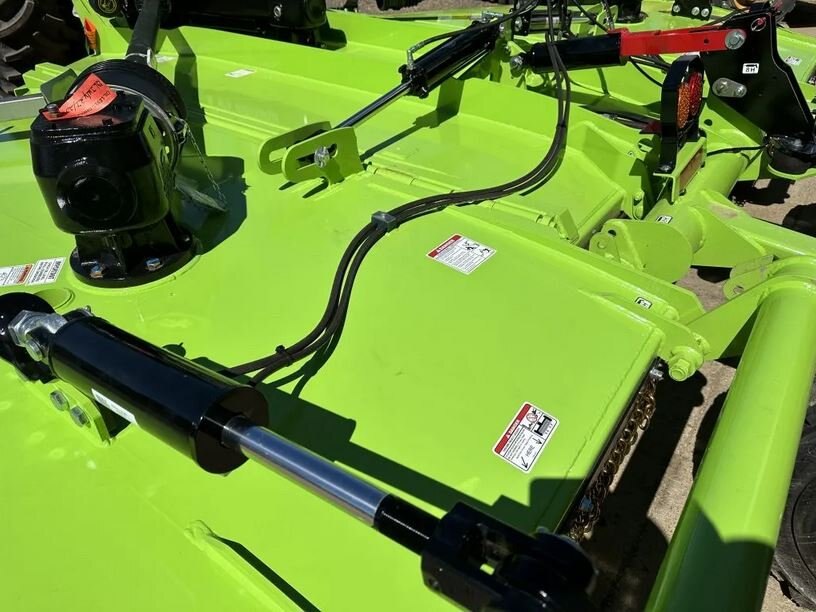

A four gearbox drive line with independent slip clutches. The FX-1800 utilizes heavy-duty and extremely reliable Bondioli gearboxes. The splitter has 1 3/4 ” 20 spline input and output shafts and is rated at 260 HP (194kw). The centre and wing boxes have 1 3/4 ” 20 spine input shafts, 2 3/8 ” down shafts and are rated at 225 HP (168kw)*.
An 80 degree CV shaft allows for smooth power transmission during tight turns. The CV for 540 rpm is a Category 6 and for 1000 rpm is a category 5 The driveline on the cutter itself employs self adjusting friction clutches to protect your investment and always operate at peak performance. All clutches are located under the main shield for ease of service.

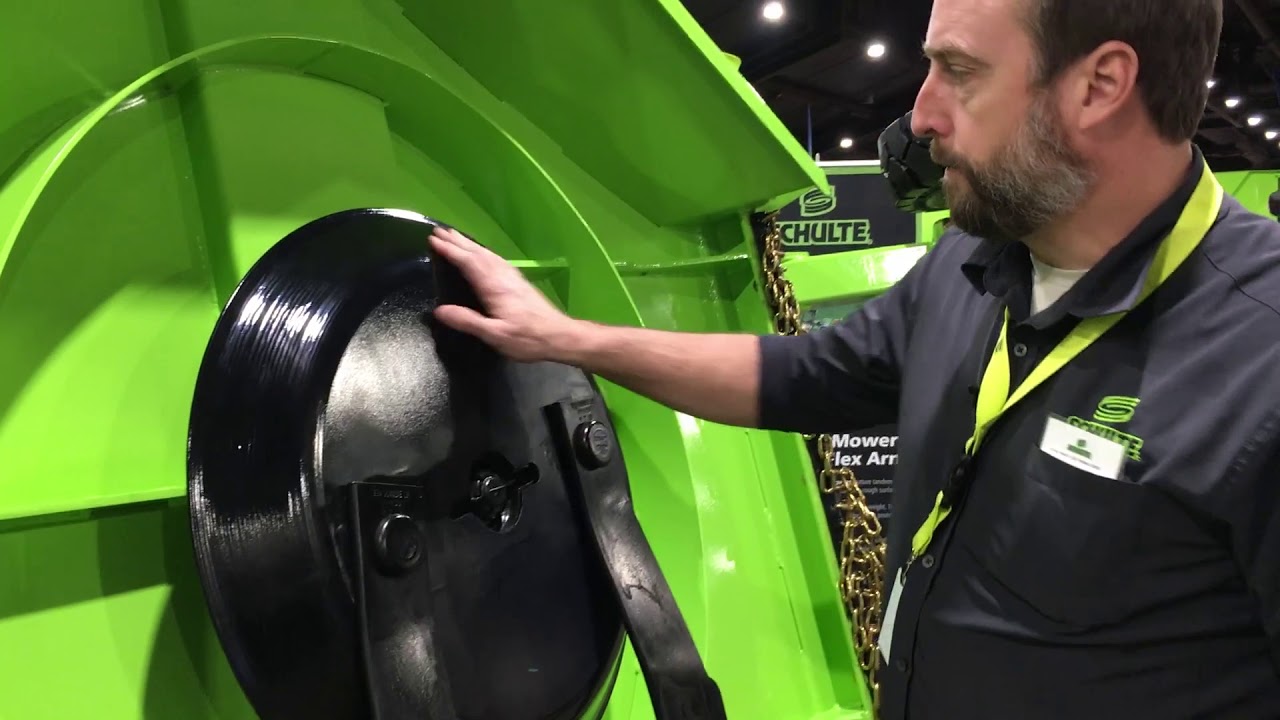

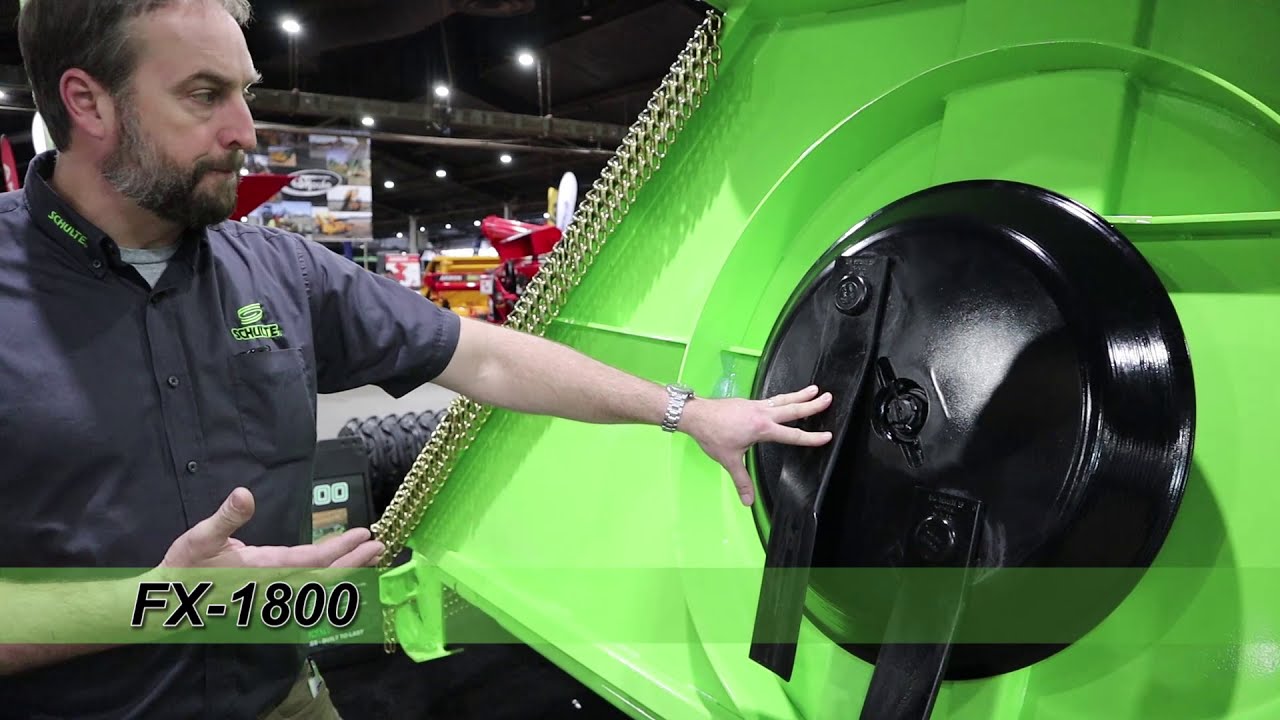

Spun formed 7gauge stump jumpers (round skid pans) ensure durability and balance.
Available in 540 or 1000rpm drive.

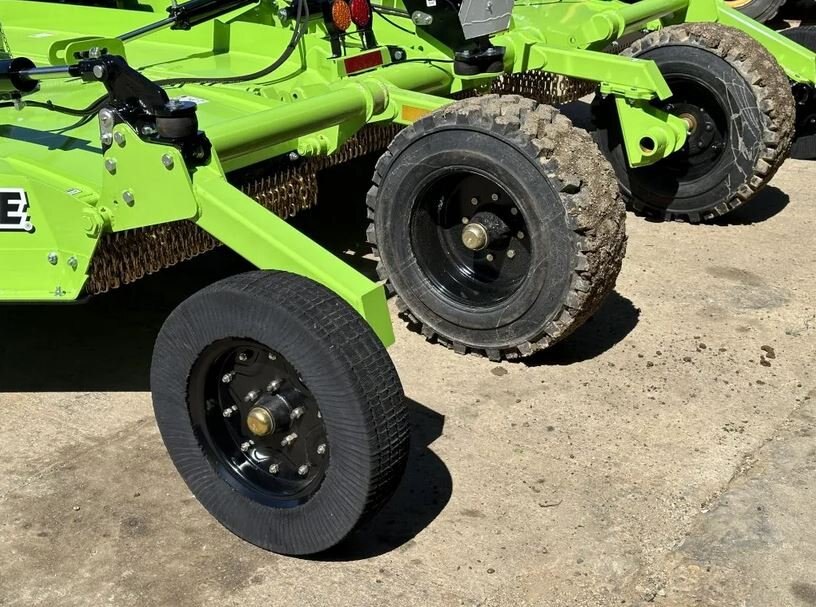

FX-1800C, DOT Equipped Unit has replaceable side bands and Hydraulic Phasing Cylinder Kit as well as 812 (8 bolt) hub with two large 1200 X 16.5 Skid Steer Tires.
