ID # 40524786

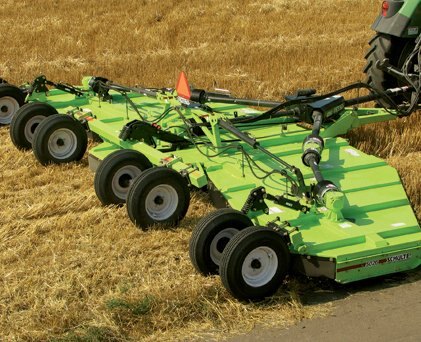

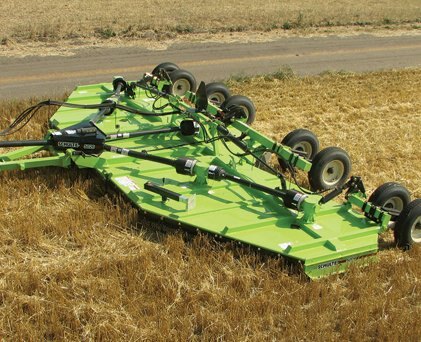

Schulte 5026 ROTARY CUTTER
Call for Price
Overview
Specifications
literature

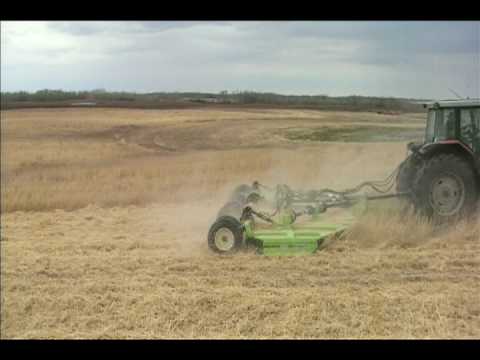

Videos
Documents
- 26 foot wide rotary cutter will make short work of your mowing or shredding.
- 1000 RPM drive line with heavy duty slip clutches and 80 constant velocity u-joint.
- Round skid pans on standard unit.
- 2-piece replaceable skid shoes on wings.
- 10 GA deck with deck protection rings.
- 7.00 x 15 light truck tires in quantities of 6 or 8.
- Hydraulic phasing cylinders for level lift.
- Double acting wing lift cylinders with mechanical float.
- Spring steel bushings at all major pivot points.
- Suspension for centre and wing frames.
- Transport locks for centre section and wings.
- An optional fixed shredding blade kit is available for enhanced shredding.
- 50 degree splitter box keeps drive lines short and machine more compact.
Model
5026 ROTARY CUTTER
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Schulte
Centre
800 RPM-15,079 ft/min (276km/hr)
Wing Inner
812 RPM-15,300 ft/min (280km/hr)
Wing Outer
974 RPM-15,300 ft/min (280km/hr)
Blade Overlap
6” centre to wing (152 mm) 5”
Cutting Width
314” (7.98 m)
Overall Width
321” maximum (8.15 m)
Cutting Height
1” - 14” (25 - 356 mm)
Overall Length
205” maximum (5.13 m)
Cutting Capacity
2” diameter material (50 mm)
Minimum Tractor HP
120 HP (90 kW)
Tractor Hydraulics
2 double acting circ, 1,750 psi (12 MPA)
Transport Clearance
13” (330 mm)
Working Range Of Wings
15 down to 45 up
Hitch Weight, Transport
2,400 lbs. (1,089 kg)
Overall Transport Width
117” (2.98 m)
Overall Transport Height
148” (3.76 m)
Shipping Weight, Wet
6,800 lbs. (3,034 kg)
