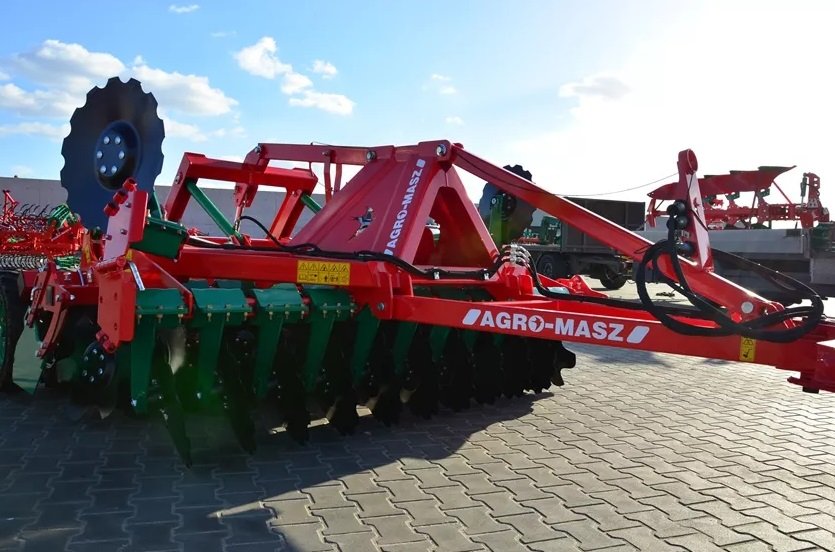

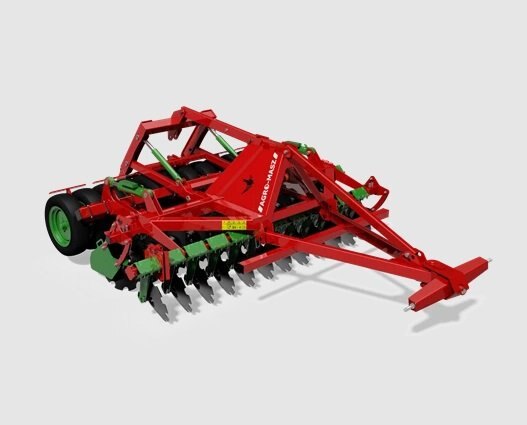

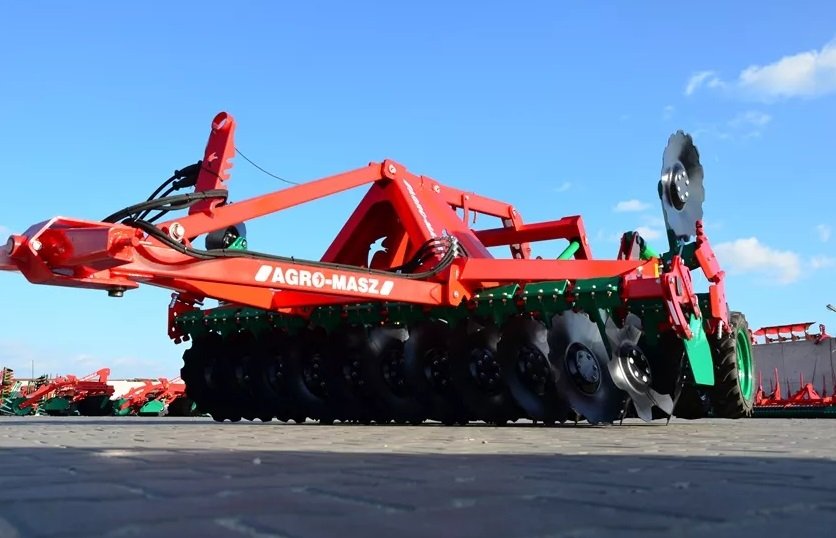

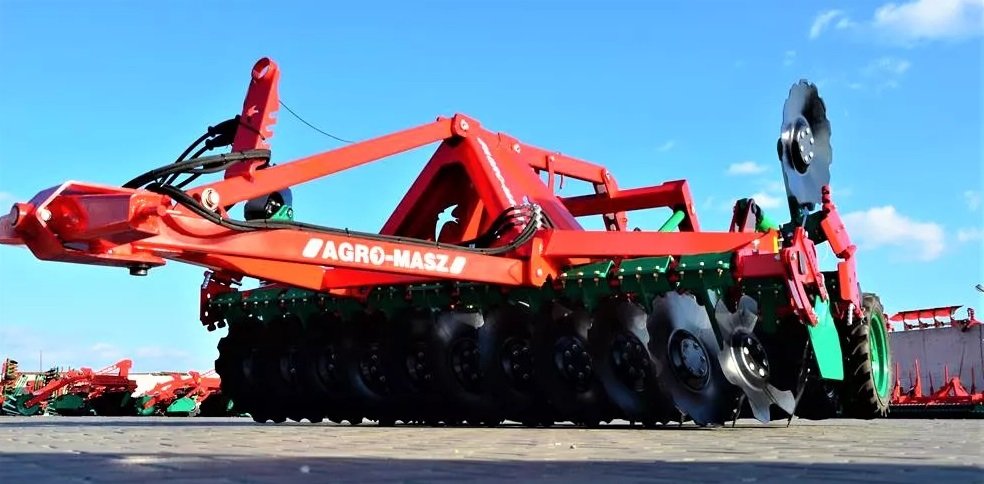

AGRO-MASZ ATO - Trailed disc cultivator 30

AGGREGATE ATO

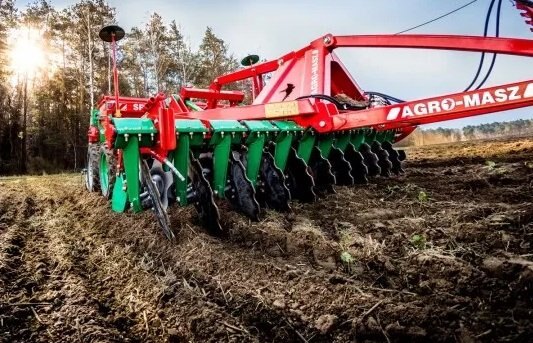

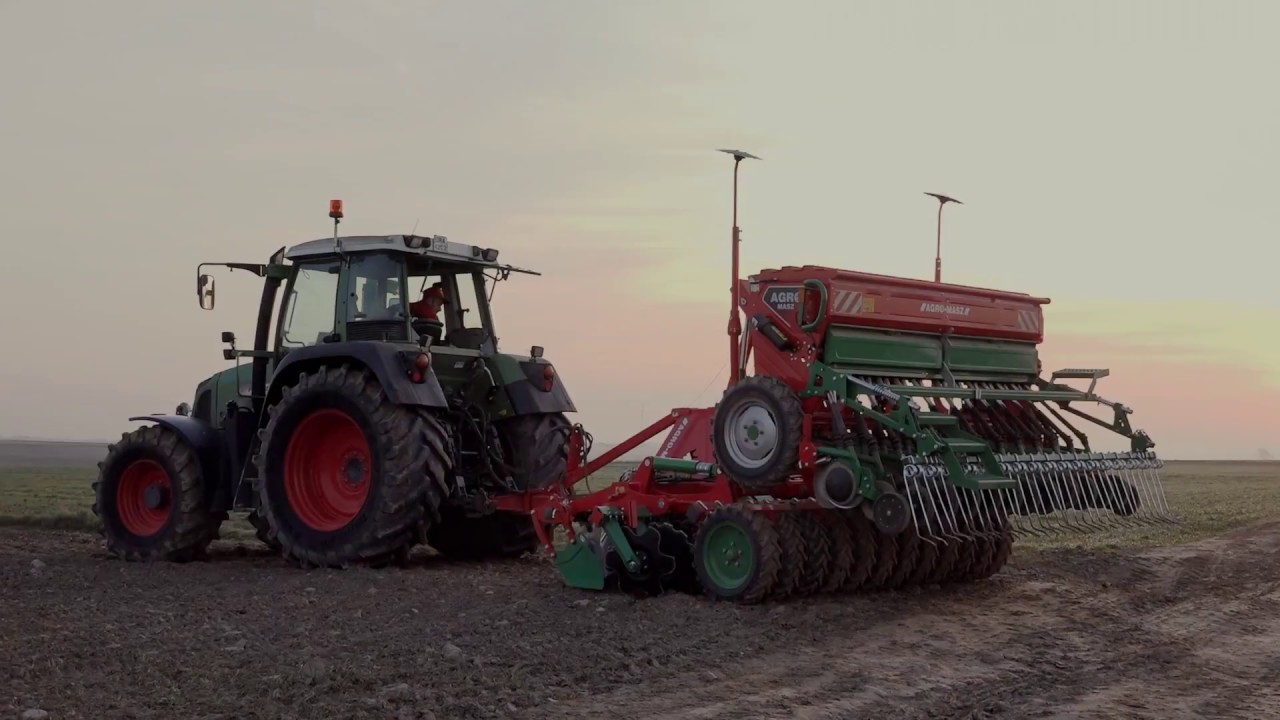

The aggregates of the ATO series are machines designed to work with tractors of lower weight. Thanks to the built-in system, the hydropack can work in conjunction with cereal seeders or aftercrop seeders, creating a combination of seed drills, efficient and easy to use.

SEMI-SUSPENDED DISC AGGREGATE

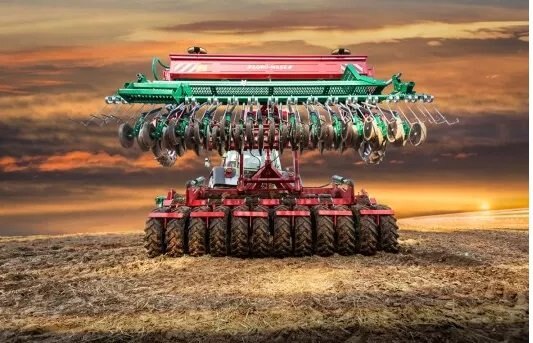

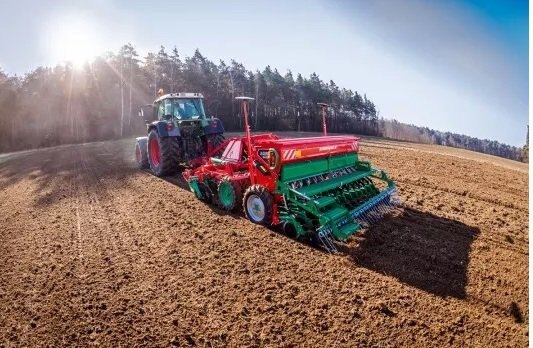

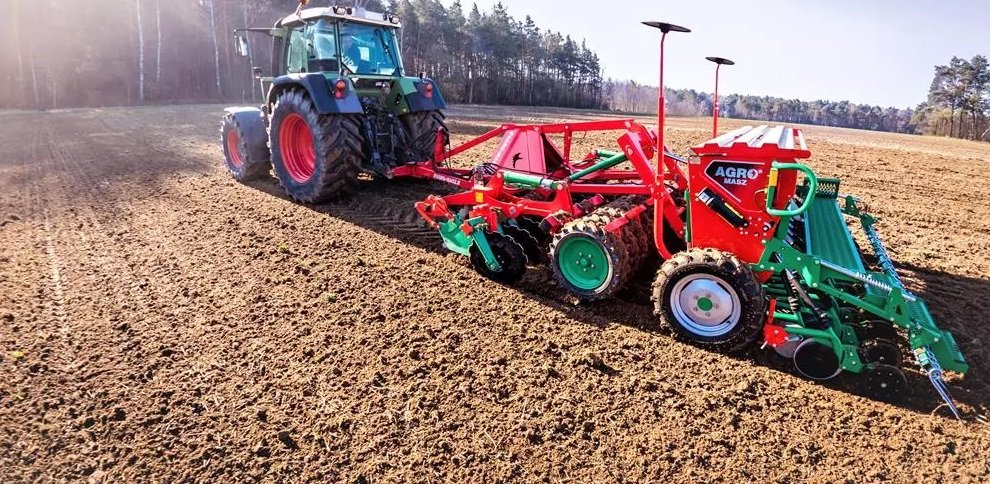

ATO is a semi-mounted machine. Thanks to this solution, the power demand for the ATO + SR300 set drops to just 100 HP.

RUBBER PROTECTION 35x210 MM

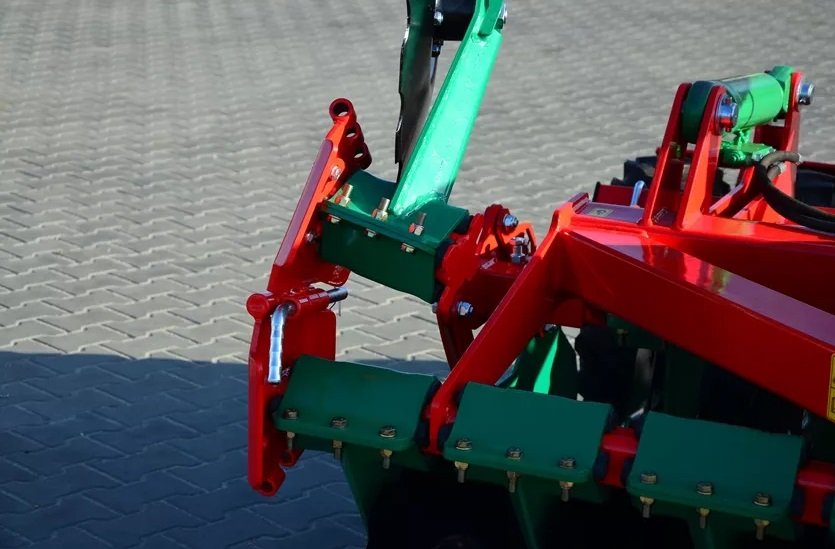

Each plate is mounted on an individual holder with a system of four rubber shock absorbers (35x210 mm). They effectively protect the plates against damage. Thanks to the protection, the user can safely operate the unit even in difficult field conditions, while being sure that the machine is solidly protected against possible damage.

SIDE SCREENS

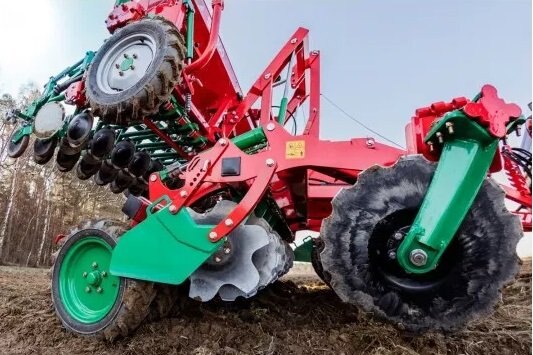

Active screens located at the edge of both disc sections limit the zone of soil deposited by the edge discs, preventing the formation of ruts at the crossing connections. In the event of excessive recess or encountering a large obstacle, the screen holders are attached to the frame using floating joints, allowing the screens to tilt upwards in the event of a collision. So you don't have to adjust the screen, it will adjust itself to the conditions.

FOLDABLE SIDE PLATES WITH ADJUSTABLE WORKING DEPTH

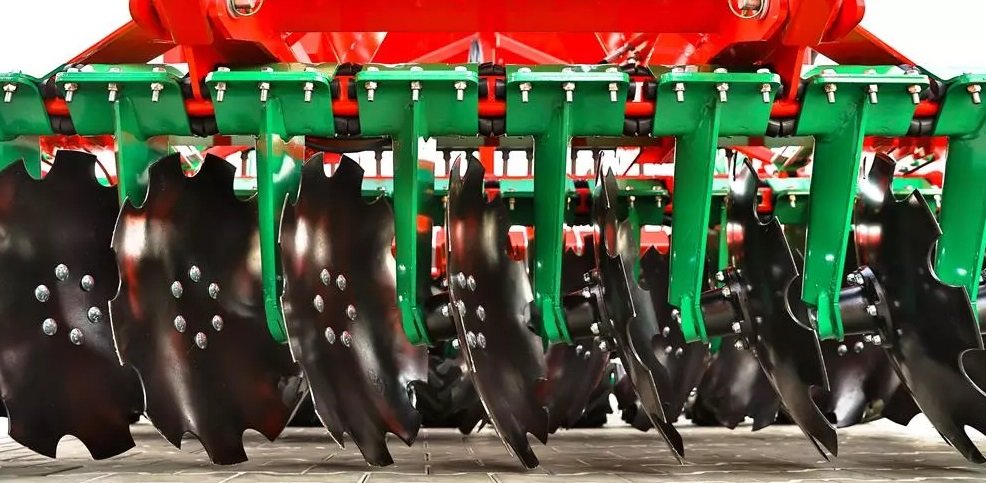

TWO ROWS OF 560 MM "P" OR "C" TYPE PLATES

MAINTENANCE-FREE HUBS WITH CASSETTE SEAL

You don't have to start work everyday with time-consuming lubrication. This machine is standard equipped with maintenance-free hubs, in the heart of which work identical bearings to those used in the automotive industry. The entire system is protected with cartridge sealers, which are most effective in harsh field work.

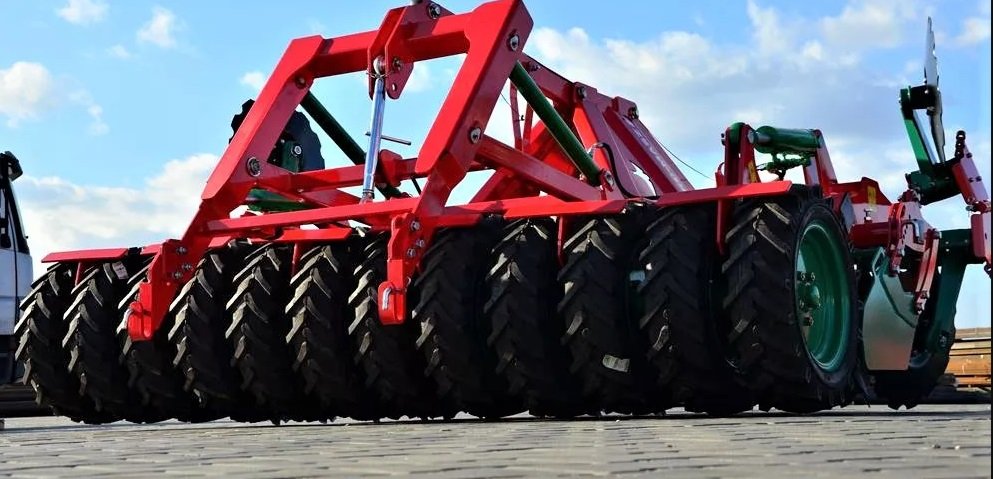

TIRE ROLLER MADE OF TIRES 185/65 15

The hydraulically adjustable tire roller is used to compact loosened soil, ensuring a more even emergence. It is very important that flexible rubber is not very susceptible to soil sticking. In addition, the shaft also performs the transport function of the aggregate.
