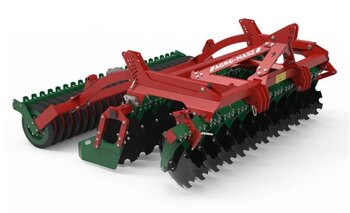

AGRO-MASZ TROL30 - Disc harrow

TROL - HIGH POSSIBILITIES

The TROL disc harrows are compact and short mounted machines. Perfect for intensive and fast stubble cultivation. They are efficient with low fuel consumption. TROL harrows are great at stubble cultivations with a large amount of crop residues, as well as restoring fallow land for cultivation. They are a universal tool that can be used to prepare soil for sowing.

MAINTENANCE-FREE HUBS WITH CASSETTE SEAL

Is daily maintenance required for your old machine too much time and attention? It's time you forget about frequent lubrication of bearings. Our disc harrows are standard equipped with maintenance-free hubs, in the heart of which work bearings identical to those used in the automotive industry. The entire system is sealed with cartridge sealers, which are most effective in harsh field work.

SIDE SCREENS

Active screens located on the edge of both disc sections limit the soil deposition zone by the outer discs, preventing rutting at the junction of passages. In the event of excessive depression or a large obstacle, the screen holders are attached to the frame with floating connections, allowing the screens to tilt up during a collision. So you don't have to adjust the screen, it adjusts itself to the conditions. In addition, you can adjust its depth and longitudinal position.

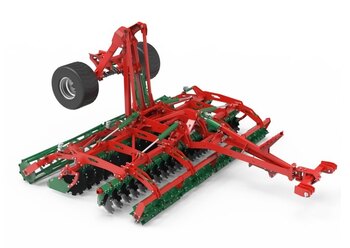

FOLDABLE SIDE PLATES

The TROL disc harrow has folded outer discs for transport. Thanks to the use of two auxiliary springs, preparing the machine for transport does not require much force.

RUBBER PROTECTION 40X210 MM

Each plate is mounted on an individual holder in a system of four rubber shock absorbers. They effectively protect the plates against damage. The shock absorbers also reduce vibrations transmitted to the machine. Work without worry, without breaks.

TWO ROWS OF 560 MM TYPE "C" PLATES AND SPACE BETWEEN THE ROWS OF PLATES 100 CM

DEPTH ADJUSTMENT

In this version of the disc harrow, the working depth of the machine is conveniently controlled by controlling the hydraulics from the tractor cabin. The working depth scale clearly visible from the operator's level will help in the optimal setting of the machine.
