ID # 40524790

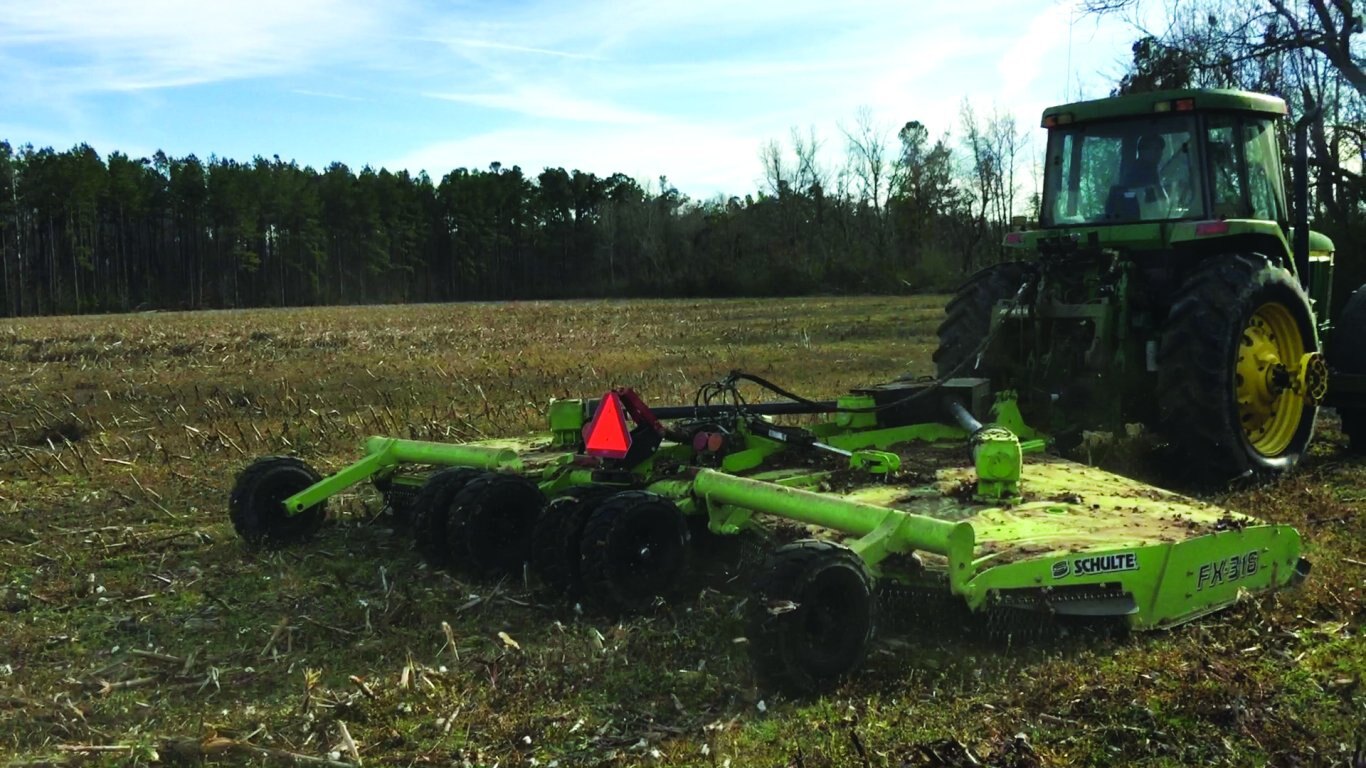

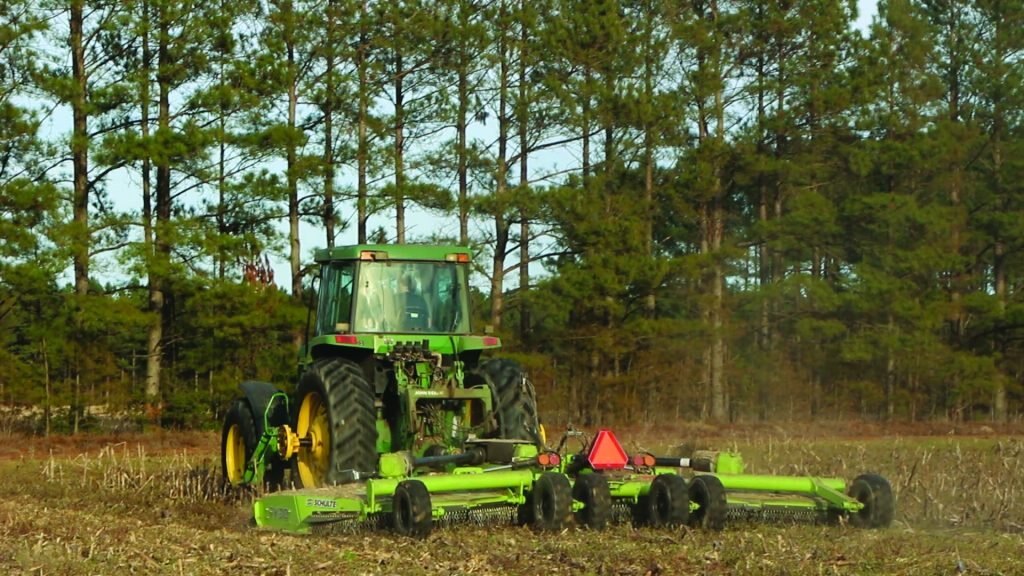

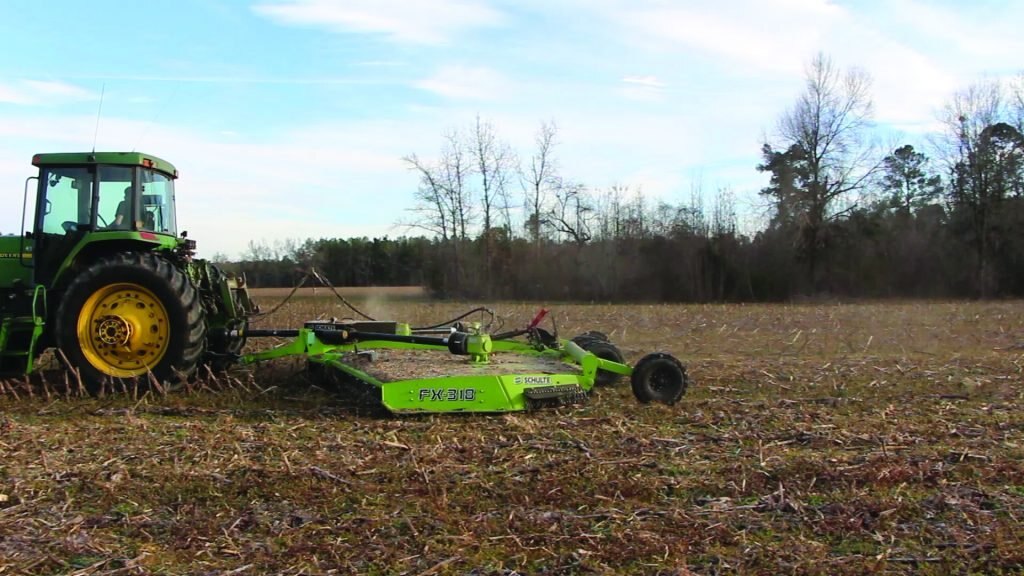

Schulte FX-318 ROTARY CUTTER
Call for Price
Overview
Specifications
literature
Videos
Documents
- Schulte’s first 18 foot flex wing rotary cutter has three sets of rotors
- An ultra narrow transport width makes moving this unit extremely safe and simple
- Run with the same HP tractor as most 15’ flex wings, but gain the extra 3’ cutting width
- Excellent choice for mowing crop residue, pastures, weeds, orchards and roadsides
- Single 7 gauge domed deck sheds water and debris and increases life of the rotary cutter deck with this easy clean feature
- Available 540rpm or 1000rpm 80° CV drive or 540 equal angle non CV drive
- Heavy duty gearboxes & drive system with spun formed 7 gauge stump jumpers ensures durability & perfect balance on the rotary mower
Model
FX-318 ROTARY CUTTER
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Schulte
Weight
5800 lbs (2631kg) (Depends on configuration)
Hitch Weight
2350 lbs (1066kg)(Depends on configuration)
Blade Overlap
6" (152mm)
Cutting Height
1.75" to 16.75" (44.5mm to 425mm)
Cutting Width
216” (5.5m)
Overall Width
228” (5.8m)
Overall Length
208” (5.3m)
Transport Width
86” (2.2m)(Singles on wings) 96” (2.4m) (Duals on wings)
Blade Tip Speed
540 rpm
Ground Clearance
14.75" (42.5mm)
Tractor PTO Speed
540 or 1000rpm
Deck Thickness
7GA (3/16", 4.6mm)
Cutting Capacity
3.5" (89mm)
Suspension
Rubber 3 puck grommet
Divider Gearbox Rating
260HP (194kw)
Recommended Tractor HP
90HP (67kW)
Minimum Tractor HP
75HP (56kW)
Center & Wing Gearbox Rating
225hp (168kw)
Side Skirt Depth & Thickness
13.63" (346mm) .25" thick (6.35mm)
Transport Height
109” (2.77m)
