Disc harrows from the BTH series are machines designed for challenging tasks. With working widths reaching 6 meters and optionally available transport equipment, they excel in intensive and fast cultivation of stubble fields. They are efficient with simultaneous low fuel consumption. The disc harrows from the BT series handle stubble fields with a large amount of post-harvest residues excellently, as well as when restoring fallows for cultivation
RUBBER PROTECTION(35 x 210 MM)
Each plate is mounted on an individual holder in a system of four rubber shock absorbers. They effectively protect the plates against damage. The shock absorbers also reduce vibrations transmitted to the machine. Work without worry, without breaks.
TWO ROWS OF PLATES
At optimally high working speeds, a properly chosen angle of attack and cutting angle of the discs enable the user to achieve maximum effectiveness in mixing crop residues with the soil while simultaneously reducing the spacing between disc rows to 85 cm or 100 cm. Two rows of discs with diameters of 560 mm or 510 mm are an additional advantage, providing precise and efficient soil processing, allowing for uniform and deep cutting of crop residues. This solution enhances the machine's work efficiency, making the hydraulically foldable disc harrow an indispensable tool in soil preparation for cultivation. It's not the machine that determines the possibilities of work; it's you who sets the limits!
MAINTENANCE-FREE HUBS WITH CASSETTE SEAL
Does the daily maintenance of your old machine demand too much time and attention? It's time to forget about frequent bearing lubrication. Our disc harrows come standard with maintenance-free hubs, housing bearings identical to those used in the automotive industry. The entire system is sealed with cassette seals, proven to be highly effective in demanding field conditions.

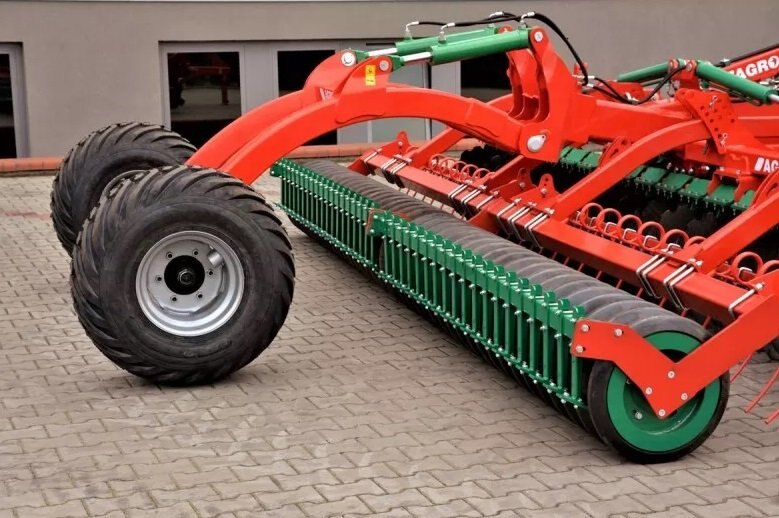

LEVELING ROLLER
The last working section of the machine is the leveling roller. Achieve the most effective soil leveling and compaction by selecting a roller from a diverse range designed for various soil conditions. With this section, you will undoubtedly achieve optimal leveling results!
SIDE SCREENS
Active screens positioned at the edge of both disc sections limit the soil deposition zone by the outer discs, preventing the formation of ruts at the junctions of passes. In case of excessive penetration or encountering a significant obstacle, the screen brackets are attached to the frame using floating connections, allowing the screens to tilt upward during a collision.
BTH - MANY POSSIBILITIES
RUBBER PROTECTION(35 x 210 MM)
TWO ROWS OF PLATES
MAINTENANCE-FREE HUBS WITH CASSETTE SEAL
LEVELING ROLLER
SIDE SCREENS
EYE-SHAPED HOOK FI40
EYE-SHAPED HOOK (HITCH) FI50
DRAWBAR CAT.3 TYPE ,,I"
DRAWBAR SPINDLE 2CAT.+3CAT.TYPE"U"
DRAWBAR CAT. 4 TYPE "U"
TUBE ROLLER (DIAMETER 500 MM) - 9 TUBES
TUBE ROLLER (DIAMETER 500 MM) - 12 TUBES
PACKER ROLLER (DIAMETER 500 MM)
CROSSKILL ROLLER (DIAMETER 400 MM)
FLEXI RING ROLLER (DIAMETER 500 MM, 60X10 MM)
STANDARD CLEANERS FOR FLEXI RING ROLLER (DIAMETER 500 MM, 60X10 MM)
RUBBER ROLLER (DIAMETER 500 MM)
CHAIN CLEANERS FOR T-RING,V-RING ROLLER AND C-RING ROLLER)
