ID # 40524750

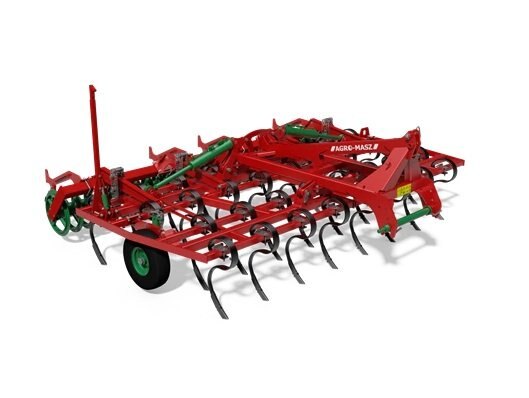

AGRO-MASZ VIBRO60 I - Cultivating and skimming aggregate

Name: AGRO-MASZ VIBRO60 I - Cultivating and skimming aggregate
Brand: AGRO-MASZ
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

A – Basic equipment:

Four rows of tines 70 x 12 mm - with straight coulter (60mm) or with goosefoot (200 mm)
Hydraulically foldable

B2 - Mandatory equipment - Rollers with holders:

Tube roller (Ø 600 mm)
Rubber roller with cleaners (Ø 560 mm) 2020 version
Flexi ring roller (Ø 600 mm, 60 x 10 mm)
Standard cleaners for flexi ring roller (Ø 600 mm 60 x 10 mm)
Cracker roller with cleaners (Ø 600 mm)
C-ring roller (Ø 600 mm) without cleaners
T-ring roller (Ø 600 mm) without cleaners
V-ring roller (Ø 600 mm) without cleaners
Standard cleaners (for C-ring, T-ring and V-ring roller)
Set of 3 rows of springs instead of roller

C - Optional equipment:

Manually adjustable front levelling bar
Front hydraulically adjustable levelling bar with 45x10 mm springs
Levelling harrow on the 4th row of tines
Harrow behind single roller (requires standard cleaner)
Harrow behind single roller (does not require standard cleaner)
Supporting wheels (2 pcs.)
Double copy wheels 23x10.50-12 (2 pcs.) (only for version without front bar, dedicated for version without roller)
Lights 2022 version
Double step
Triple step 1/2
Triple step 0/3
Mounting base SP200
Fertiliser distributor head with hoses and nozzles on the tines (without transport system between seeding unit and head)
Surcharge for stronger tines 70x12

Specifications

Model

VIBRO I

Category Name

Agriculture

Year

2026

Sale Type

New

Manufacturer

AGRO-MASZ

Width (m)

6

Weight (kg)

2400

Power Demand (HP)

160

No. Of Tines (pcs)

49 / 41

Performance (ha/h)

6.0 - 7.2

Working Depth Max (cm)

4 - 13

description

VIBRO I - MULTIFUNCTIONALITY

Properly shortened design, high throughput, the possibility of deep loosening of the soil, as well as shallow stubble cultivation are strong arguments that will allow you to get great results.

FOUR ROWS OF TEETH 70x12 MM

Four beams on which elastic claws with straight coulters are placed are the basic tools ensuring great mixing of the soil in preparation for sowing. On the other hand, for optimal mixing of soil with organic residues during stubble cultivation, the optionally available spring tines with "goose foot" coulters will work perfectly well.

SIMPLE ADJUSTMENT

The VIBRO aggregate has the option of mounting copying wheels, which are mounted in the center of the tine section. The wheels stabilize the work of the aggregate, preventing the cultivation section from sinking too much.

EFFICIENCY

Even greater efficiency - our cultivator is adapted for connection with SP200 catch crop seeder.

LEVELING SCRAPER

Just behind the fourth row of scoops there is a harrow, whose task is to level the unevenness resulting from the previous section.

ROWS OF SPRING BROWS

The best effect of soil crushing and its leveling on the surface is obtained as a result of the work of the scraper. After one work run, the soil is prepared for sowing.

mandatory equipment
