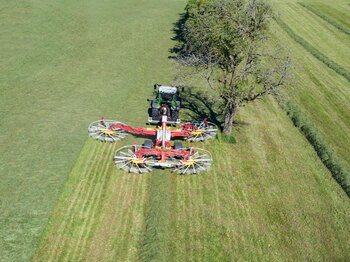

Poettinger TOP 762 C
TOP centre-swath rakes guarantee you get uniform swaths in all conditions. Their design makes them easy to operate. Thanks to the working width adjustment, on many models the swath width can be easily matched to the next harvesting machine.
| Working width | 22'2'' - 24'7'' (6,75 - 7,5 m) |
| Working width adjustment | Mechanical |
| Swath width | 3'7'' - 6'7'' (1,1 - 2 m) |
| Rotor diameter | 10'10'' (3,3 m) |
| Rotor diameter front / rear | - |
| Transport width | 8'4'' / 9'6'' (2,55 / 2,9 m) |
| Transport height | 13'1'' (3,99 m) |
| Transport length | 19'2'' (5,83 m) |
| Transport length | - |
| Parking height without tine arms removed | 13'1'' (3,99 m) |
| Parking height with tine arms removed * | 11'6'' (3,5 m) |
| Tine arms per rotor | 13 pcs. |
| Tine arms per rotor rear / front | - |
| Removable tine carrier arms per rotor | 13 |
| Tines per tine arm | 4 pcs. |
| Rotor unit | TOPTECH PLUS |
| PTO speed | 540 rpm |
| Weight | 4277 lbs (1940 kg) |
| Power requirement | 60 hp |
| Mounting | Trailed hydraulic folding |
| Tires - chassis | 260/70-15,3 |
| Swath placement in direction of travel | middle |
| Height adjustment system | Crank handle adjuster |
| Axle | 5-wheel chassis incl, tandem axles |
| Rotor tires (standard) | 16 x 6,5-8 |
| Multitast wheels | Inner Multitast wheels on all rotors |
| Wide-angle PTO shaft optional | Wide-angle PTO shaft on one end |
| Brochures | Link |
| POETTINGER_HIT_021.US.0822 | Download |
