AGRO-MASZ AT - Disk aggregate v2018 30

Name: AGRO-MASZ AT - Disk aggregate v2018 30
Brand: AGRO-MASZ
Availability: OutOfStock

Videos

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

A – Basic equipment:

Rubber safety device 35x210 mm
Two rows of discs 510 mm or 560 mm type „P” standard or „C”
Maintenance-free hubs with cartridge seal
Distance between the rows of discs 70 cm
Sode screens
Foldable side discs with adjustment of working depth in AT27-AT40
Hydraulic lifting of seeder

B1 – Mandatory equipment - Rollers without holders:

Tube roller (Ø 500 mm) - 9 tubes
Tube roller (Ø 500 mm) - 12 tubes
Packer roller (Ø 500 mm)
Crosskill roller (Ø 400 mm)
Flexi ring roller without cleaners (Ø 500 mm, 60 x 10)
Rubber roller (Ø 500 mm)
C-ring roller (Ø 500mm) without cleaners
T-ring roller (Ø 500 mm) without cleaners
V-ring roller (Ø 500 mm) without cleaners
Standard cleaner

C – Optional equipment:

Hydraulic adjustment of working depth

Specifications

Model

AT

Category Name

Agriculture

Year

2026

Sale Type

New

Manufacturer

AGRO-MASZ

Width (m)

3

Weight (kg)

1200

Power Demand (HP)

100 - 130

No. Of Tines (pcs)

24

Performance (ha/h)

2.0 - 3.0

Working Depth Max (cm)

14

description

DISC AGGREGATE

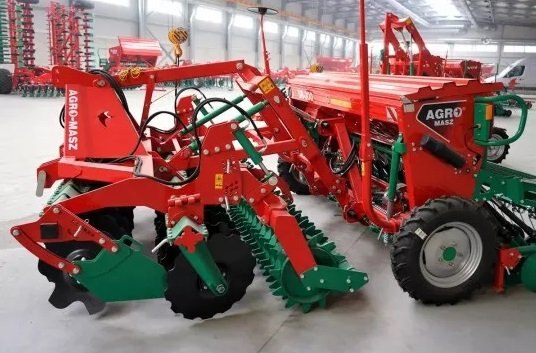

The AT series aggregates are machines that are the realization of the idea of creating a cultivation structure of low weight and compact construction. Thanks to the built-in system, the hydropack can work in conjunction with cereal seed drills to create a combination of seed drills, efficient and easy to use.

MAINTENANCE-FREE HUBS WITH CASSETTE SEAL

You don't have to start work everyday with time-consuming lubrication. Our disc harrows are standard equipped with maintenance-free hubs, in the heart of which work bearings identical to those used in the automotive industry. The entire system is protected with cartridge sealers, which are most effective in harsh field work.

SCREENS SIDE

Active screens located on the edge of both disc sections limit the soil deposition zone by the outer discs, preventing rutting at the junction of passages. In the event of excessive depression or a large obstacle, the screen holders are attached to the frame with floating connections, allowing the screens to tilt up during a collision. So you don't have to adjust the screen, it adjusts itself to the conditions. In addition, you can adjust its depth and longitudinal position.

RUBBER PROTECTION 35x210 MM

Plates with a diameter of 510 or 560 mm are mounted on individual holders amortized by a system of four rubber elastomers that effectively protect the plates against damage. The shock absorbers also reduce vibrations transmitted to the machine. A suitable grip profile is constructed to prevent blocking between it and the working plate of stones. Work without worry, without breaks.

SPACE BETWEEN ROWS OF PLATES 70 CM

The rake angle and the cutting angle of the discs suitable for high working speeds allow the user to obtain the fullest possible effect of mixing crop residues with the soil with the disc row spacing reduced to 70 cm. It is not the machine that determines job opportunities! You set the limits!

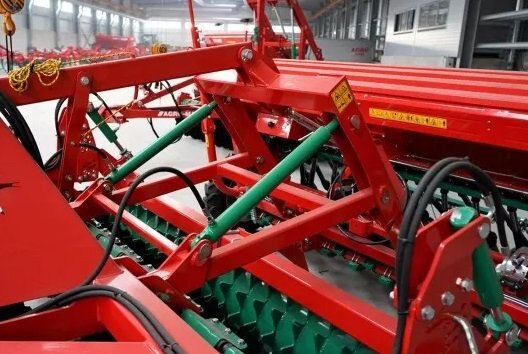

SPACING OF THE SEEDER'S MOUNTINGS IN THE HYDROPACK

Thanks to the special structure, our hydropack is equipped with the possibility of various configurations of the width of the mounts, so that it can also be adapted to seed drills from other manufacturers.

mandatory equipment
